Precision Concrete Weighbridge Scale Heavy Duty Precast Truck Scales For Weighing

Name: Precision Concrete Weighbridge Scale Heavy Duty Precast Truck Scales For Weighing
Brand: SMARTWEIGH
Price: 1 USD

Buy cheap Precision Concrete Weighbridge Scale Heavy Duty Precast Truck Scales For Weighing product

Brand Name : SMARTWEIGH

Model Number : SCSC8002

Certification : ISO/CE/SGS

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T,L/C,Western Union,MoneyGram

Supply Ability : 500 Sets/Month

Delivery Time : 3-8 weeks

Type : Weighbridge Scale

Capacity : 60-150T

Width : 3m/3.2m/3.4/mCustomized

Weighing Accuracy : OIML (Grade: III)

Customization : Available

Platform Length : 6-24m(Customized)

CLC : Over 30% Of Total Capacity

Contact Now

Heavy Duty Concrete Weighbridge Scale Precast Concrete Truck Scales

The Built-in Concrete Weighbridge is a concrete-deck scale designed for weighing highway vehicles in above-ground installations. Its 250 mm reinforced concrete deck is supported by a modular steel I-beam framework with built-in side rails for added safety. The structure is assembled on-site for quick installation and long-term durability. Equipped with high-precision load cells, the scale delivers accurate and reliable weighing performance under heavy traffic conditions.

Main Features:

1. The concrete deck exists no indentation after long time use.

2. The decks are non-conductive, can protect from the lighting effectively, avoiding the load cells from damage.
3. Anti-rust, anti-oxidation, anti-wet, and full adapt to the full chemical rust environment.
4. Applied in rusted chemical companies, sea port and construction sites.
5. Measure linearity is good and especially suitable for high weight trucks requirement.
6. The concrete can be pre-fabricated in modulars or poured in end user’s installation sites
7. Explosive proof weighing system (full take advantage of concrete platforms physical features).
8. Special long deck sizes weighing system (can extend the deck length and no affect from the natural conditions).
9. All purposed universal truck scale weighing functions.
10. Convenient for container shipping.

—— TECHNIQUE SPECIFICATION——

SMARTWEIGH INSTRUMENT CO.,LTD.

Truck Weighbridge Specification
Procuct Name	Heavy Duty Concrete Weighbridge Scale Precast Concrete Truck Scales
Safe Overload	130%
Surface Finish	Ball blasting and Anti-rust epoxy paint
Top Plate Thickness	10mm/ 12mm/ 14mm
Color	Customized
Accuracy	OIML C3
Platform Size	3Mx6M/8M/9M/10M/12M/15M.../Customized
Surface	Checkered/Smooth
Beam/ Ribs No	6 pcs
Power Supply	AC 220V, DC 12V Battery Backup
Load Cell Type	Single-point load cell or Multi-point load cell
Protection Class	IP65-68
Calibration	Digital calibration with built-in calibration weight
Normal Working Temp	-10°C to +40°C
Type	Truck Scale Weighbridge

—— PRODUCT DETIALS ——

SMARTWEIGH INSTRUMENT CO.,LTD.

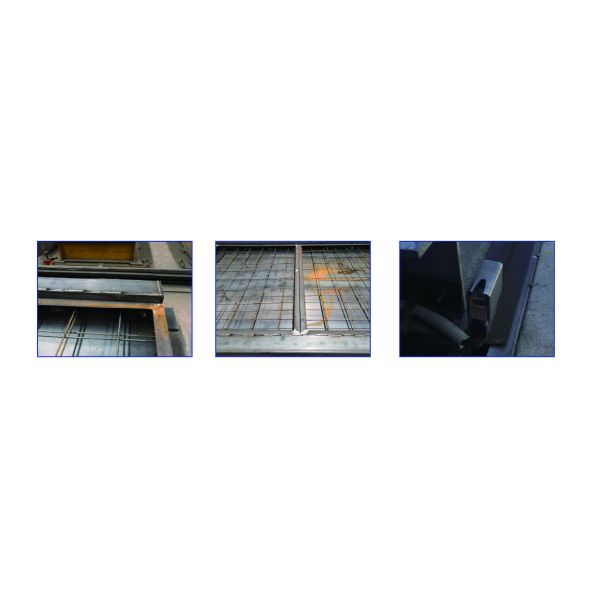

—— MANUFACTURING PROCESS ——

SMARTWEIGH INSTRUMENT CO.,LTD.

Precision Concrete Weighbridge Scale Heavy Duty Precast Truck Scales For Weighing

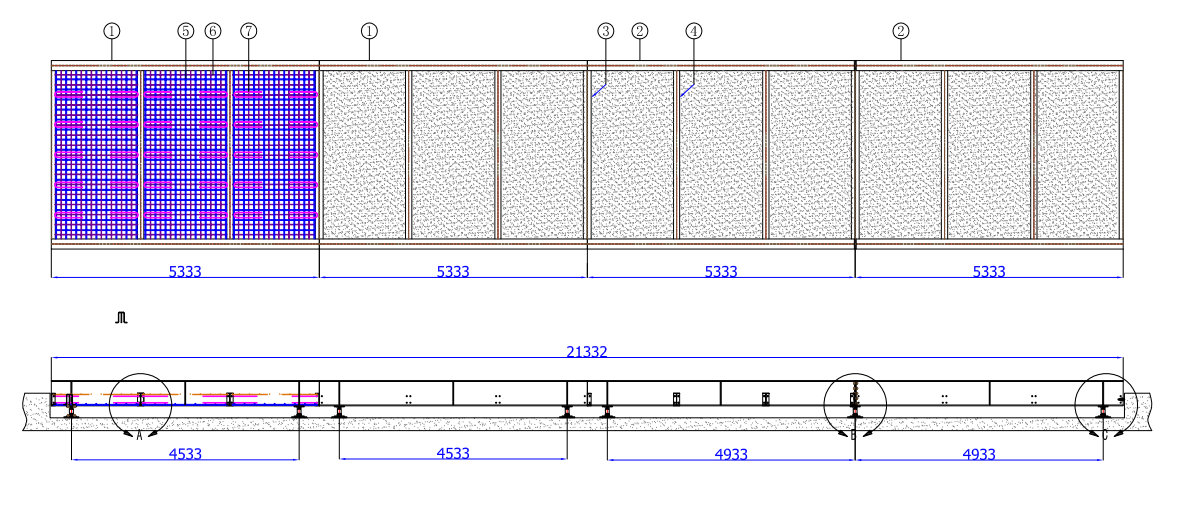

—— PRODUCT SIZE ILLUSTRATION ——

SMARTWEIGH INSTRUMENT CO.,LTD.

Precision Concrete Weighbridge Scale Heavy Duty Precast Truck Scales For Weighing

Truck Weighbridge Scale Specification
	Model	SCS-30	SCS-40	SCS-50	SCS-60	SCS-80	SCS-100	SCS-120	SCS-150
Size
Capacity		30T	40T	50T	60T	80T	100T	120T	150T
Accuracy		10kg	10kg	20kg	20kg	20kg	20kg	20kg	20kg
3.0×7M		●	●
3.0×9M			●	●
3.0×10M				●	●
3.0×12M				●	●
3.0×14M				●	●	●
3.0×15M				●	●	●	●	●
3.0×16M					●	●	●	●	●
3.0×18M					●	●	●	●	●
3.0×20M						●	●	●	●
3.2×12M				●	●
3.2×14M				●	●	●
3.2×16M				●	●	●	●	●
3.2×18M					●	●	●	●	●
3.2×20M					●	●	●	●	●
3.4×14M				●	●	●
3.4×16M				●	●	●	●	●	●
3.4×18M					●	●	●	●	●
3.4×21M					●	●	●	●	●

Note: The road weighbridge scale deck width 3m/3.2m/3.4m/4m is optional. Precision Concrete Weighbridge Scale Heavy Duty Precast Truck Scales For Weighing

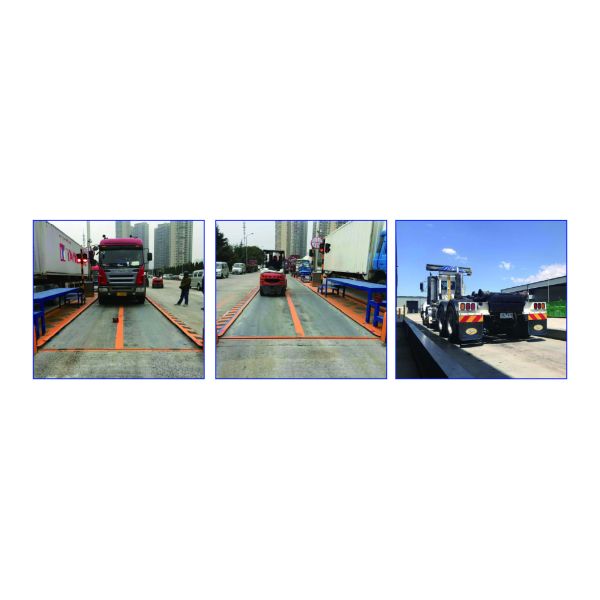

—— APPLICATION SHOWCASE ——

SMARTWEIGH INSTRUMENT CO.,LTD.

Precision Concrete Weighbridge Scale Heavy Duty Precast Truck Scales For Weighing

—— PACKAGEING AND DELIVERY ——

SMARTWEIGH INSTRUMENT CO.,LTD.

Precision Concrete Weighbridge Scale Heavy Duty Precast Truck Scales For Weighing

Delivery:We support professional packaging and worldwide delivery, including leading international carriers like DHL, FedEx, and UPS.
