Brand Name : SMARTWEIGH
Model Number : SQB8001
Certification : ISO/CE/SGS
Place of Origin : China
MOQ : 1 Set
Price : Negotiable
Payment Terms : ,T/T,L/C,Western Union,MoneyGram
Supply Ability : 500 Sets/Month
Type : Weighing Modules
Capacity : 0.1T~10T
Protection Class : IP67/IP68
Material : Alloy Steel, Stainless Steel
Safe Overload : 120%F.S
Customization : Avaliable
| —— TECHNIQUE SPECIFICATION —— SMARTWEIGH INSTRUMENT CO., LTD. |
| Name | 1T/2T Weighing Sensor Module Industrial Load Cell Weighing Module For Reactor And Hopper Tank Scale Integration |
| Capacity | 100kg/150kg/200kg/250kg/300kg 0.5t / 1t / 1.5t / 2t / 2.5t / 3t / 5t / 7.5t / 10t |
| Readability | 2.0±0.002mv/v(100~300kg) 3.0±0.002mv/v(0.5~10t) |
| Protection Class | IP67/IP68 |
| Material | Alloy steel, Stainless Steel |
| Safe Overload | 120%F.S |
| Extreme Overload | 150%F.S |
| Type | Weighing Module |

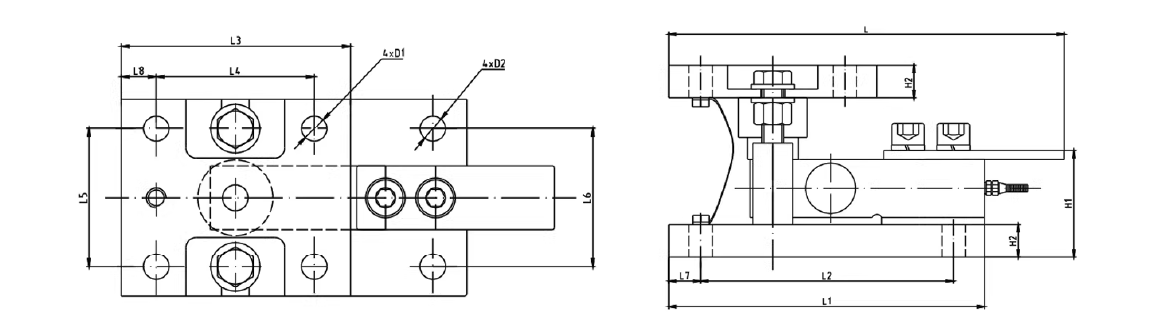

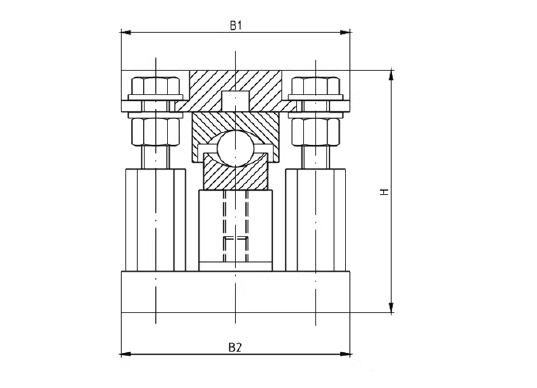

| —— PRODUCT SIZE ILLUSTRATION —— SMARTWEIGH INSTRUMENT CO., LTD. |


| Rated Load (t) | H | H1 | H2 | B1 | B2 | D1 | D2 | L | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.1–2.5 | 106 | 58 | 18 | 100 | 100 | Φ13 | Φ13 | 210 | 175 | 140 | 116 | 80 | 70 | 70 | 17.5 | 18 |
| 3–5 | 135 | 69.1 | 23 | 150 | 150 | Φ17 | Φ17 | 270 | 235 | 200 | 150 | 100 | 90 | 90 | 15 | 25 |
| 7.5–10 | 186.3 | 91.3 | 28.5 | 180 | 180 | Φ26 | Φ26 | 345.2 | 310 | 250 | 210.4 | 150.4 | 110 | 110 | 30 | 30 |
| —— DELIVERY —— SMARTWEIGH INSTRUMENT CO., LTD. |
Delivery: We support professional packaging and worldwide delivery, including leading international carriers like DHL, FedEx, and UPS.
|
|
1T/2T Weighing Sensor Module Industrial Load Cell Weighing Module For Reactor And Hopper Tank Scale Integration Images |
